K53271 - Icon 6" Lift Stage 1 Suspension System for 22-23 Tundra
Brand
Icon Vehicle Dynamics
Part Number
K53271
$3,399.55
This item ships freight.
We may call you for additional costs.
We may call you for additional costs.
In the Denver area? We install! Call today to schedule a time.
K53271 - Icon 6" Lift Stage 1 Suspension System for 22-23 Tundra
Features & Benefits:
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Front coilover spacer kit with heavy duty steel construction
- Provides 6" front suspension lift with only 4" of crossmember drop
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- 2.0 Aluminum Series rear shocks to improve rear suspension performance
- Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
Tech Info:
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
- APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
- APPLICATION NOTE #144: Not Compatible With Trd Pro
- APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
- APPLICATION NOTE #154: Not Compatible With Tundra Sr5 Equipped With Trd Sport Package
- APPLICATION NOTE #155: May Require Recalibration Of Toyota Safety Sense System After Install
- TECH NOTE: Requires minimum of 20" diameter wheels

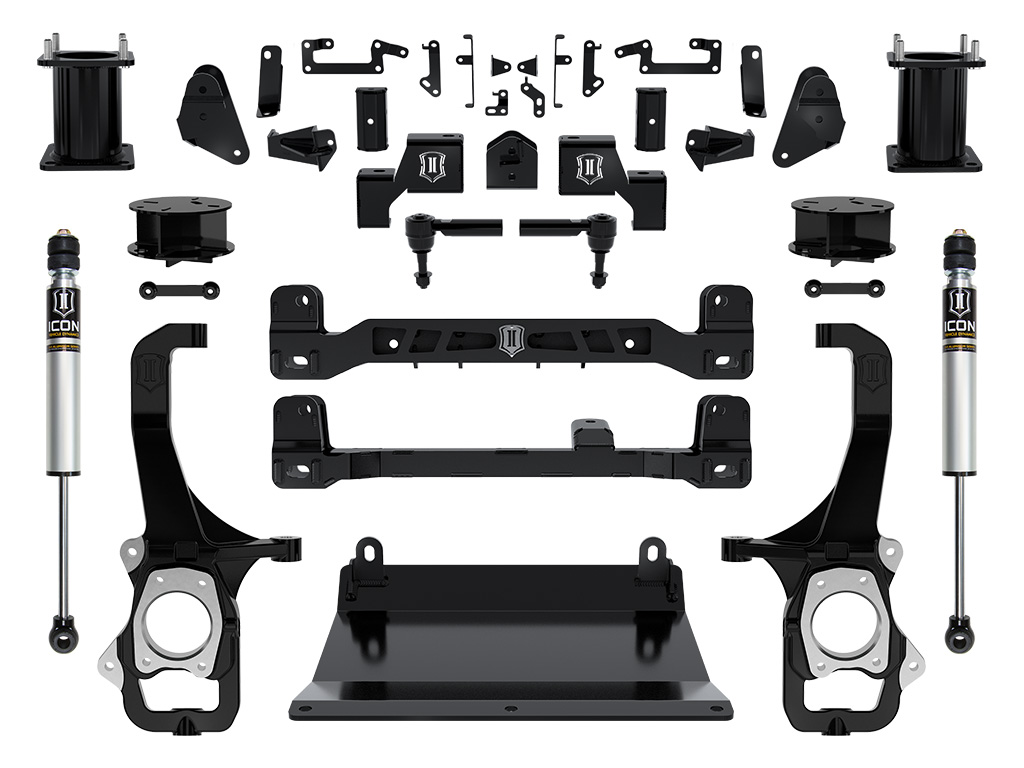

System Components:
- 51010 (QTY: 1) | 22-23 TUNDRA FRONT BOX KIT 1
- 51011 (QTY: 1) | 22-23 TUNDRA FRONT BOX KIT 2
- 51012 (QTY: 1) | 22-23 TUNDRA REAR BOX KIT
- 51014 (QTY: 1) | 22-23 TUNDRA FRONT KNUCKLE KIT
- 51015 (QTY: 1) | 22-23 TUNDRA / 23 SEQUOIA 6" COILVER SPACER KIT
- 51016 (QTY: 1) | 22 TUNDRA REAR COIL SPACER KIT
- 51017 (QTY: 1) | 22-23 TUNDRA FRONT SKID PLATE
- 56517 (QTY: 2) | 22-23 TUNDRA 3.5" REAR 2.0 VS IR
| Manufacturer | Icon Vehicle Dynamics |
|---|
