K53022 - ICON Stage 2 Suspension System (07-21 Tundra)
From $2,234.06
To $2,272.01

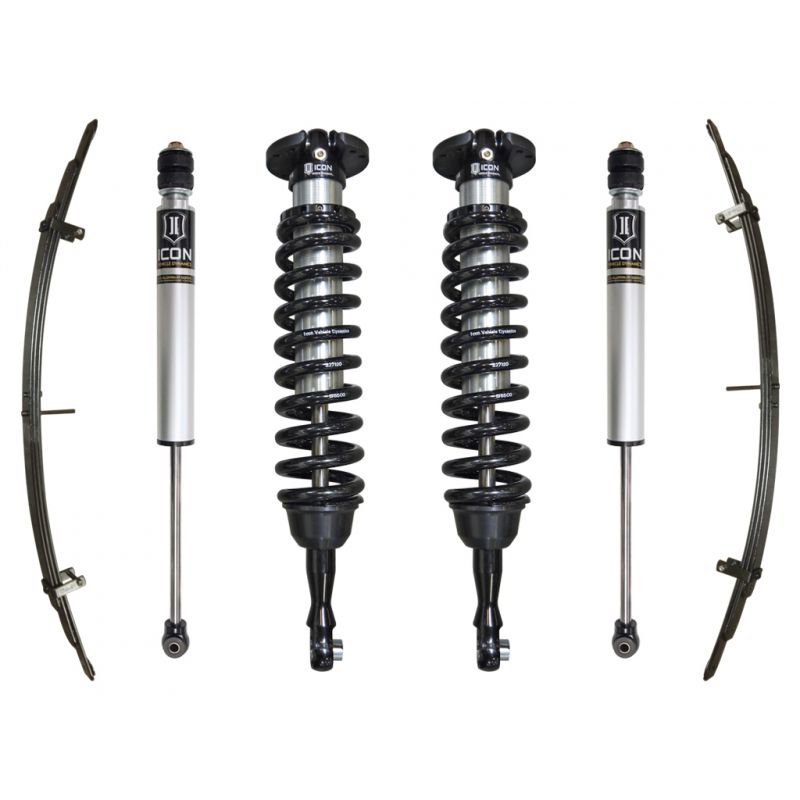

System Components:
- 58650 (QTY - 1) - 2007-2021 Toyota Tundra (0-3" Lift) 2.5" IFP Extended Travel Coilover Shocks
- 51200 (QTY - 1) - 2007-2021 Toyota Tundra (1.5" Lift) Rear Expansion Pack
- 56506 (QTY - 2) - 2007-2021 Toyota Tundra (0-1.5" Lift) 2.0 VS Aluminum Series Rear Shock
Optional:
- Spanner wrench for coilover adjustment is optional. Choose from menu.
K53022 - ICON Stage 2 Suspension System (07-21 Tundra)
ICON Vehicle Dynamics Toyota Tundra Stage 2 Suspension Systems are designed with maximum performance and the serious driver in mind. ICON increases wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. ICON Stage 2 Suspension System includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 VS Aluminum Series monotube rear shocks utilize a vehicle-specific valving and then when combined with ICON's expansion pack give you the performance of the truck from front to rear. The ICON Vehicle Dynamics 2007 - Current Toyota Tundra Stage 2 Suspension System is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
K53022 - ICON STAGE 2 Key Features:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from 0-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- High strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 VS Aluminum Series with 5/8" polished nitro steel shaft
- 1.5" Rear Exspansion pack for better ride quaility
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Made in the USA
Wheel & Tire Fitment Info:
- OEM Wheels & Tires: Yes
- Aftermarket Wheels: 8" - 9" Wide Wheel With 5" Backspace
- Aftermarket Tires: 33 x 11.50 Tall Tires
- (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
***Free Shipping Applies to the Lower 48 US States. Items will be shipped via Ground Shipping. If you need expedited shipping methods, please contact us***
| Manufacturer | Icon Vehicle Dynamics |
|---|
