K53003 - Icon Stage 3 Full Suspension System (05-23 Tacoma)
From $3,223.45
To $3,841.40

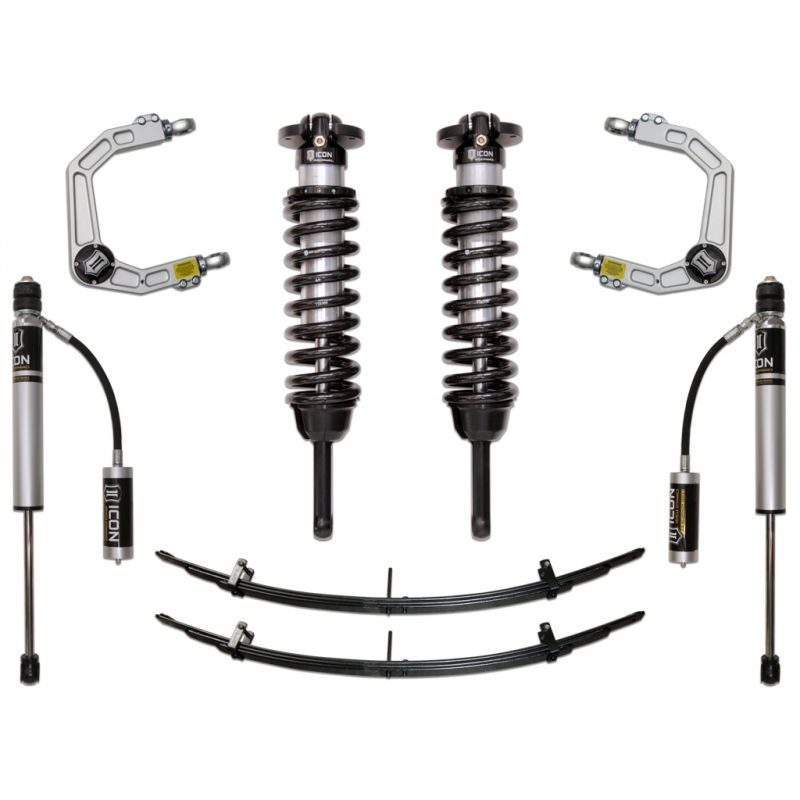

SYSTEM COMPONENTS:
- 58635 (QTY.1) | 05-UP Tacoma Ext. Travel 2.5 VS IR Coilover Kit
- 51100 (QTY.1) | 96-UP Tacoma/00-06 Tundra 1.5" Add-a-leaf kit
- 56503R (QTY.2) | 05-UP Tacoma 4WD 0-1.5" Rear 2.0 VS RR
Choose your Upper Control Arms:
- 58550DJ (QTY.1) | 05-UP Tacoma Billet UCA DJ Kit
- 58450DJ (QTY.1) | 05-UP Tacoma Tubular UCA DJ Kit
Optional:
- Spanner wrench for coilover adjustment is optional. Choose from menu.
K53003 - Icon Stage 3 Full Suspension System (05-23 Tacoma)
OVERVIEW:
ICON Vehicle Dynamics Toyota Tacoma Suspension Systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. ICON Stage 3 Suspension System includes vehicle-specific tuned 2.5” Extended Travel Coilover Shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach Coil Springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. ICON 2.0 Aluminum Series Remote Reservoir Rear Shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-Current Toyota Tacoma 4WD/PreRunner Stage 3 Suspension System is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
ICON Stage 3 features upper control arms with ICON's patent pending Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
K53003 - ICON STAGE 3 KEY FEATURES:
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide 0-3.5" on 2005-2015 Tacoma and 0-2.75" lift on 2016+ Tacoma models.
- Extended Travel coilovers matched with ICON UCA provides increased front droop travel
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series remote reservoir rear shock with 5/8" shaft
- Bolt-on system means no cutting or welding necessary for install
WHEEL & TIRE FITMENT INFO:
- OEM Wheels & Tires: Yes
- Aftermarket Wheels: 8.5" Wide, 4.75" Backspace
- Aftermarket Tires: 33 x 11.50
- (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
| Manufacturer | Icon Vehicle Dynamics |
|---|
