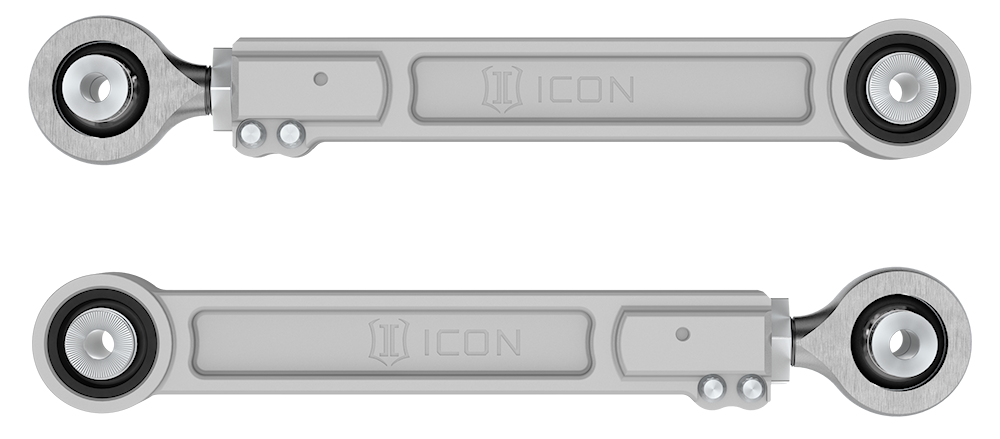

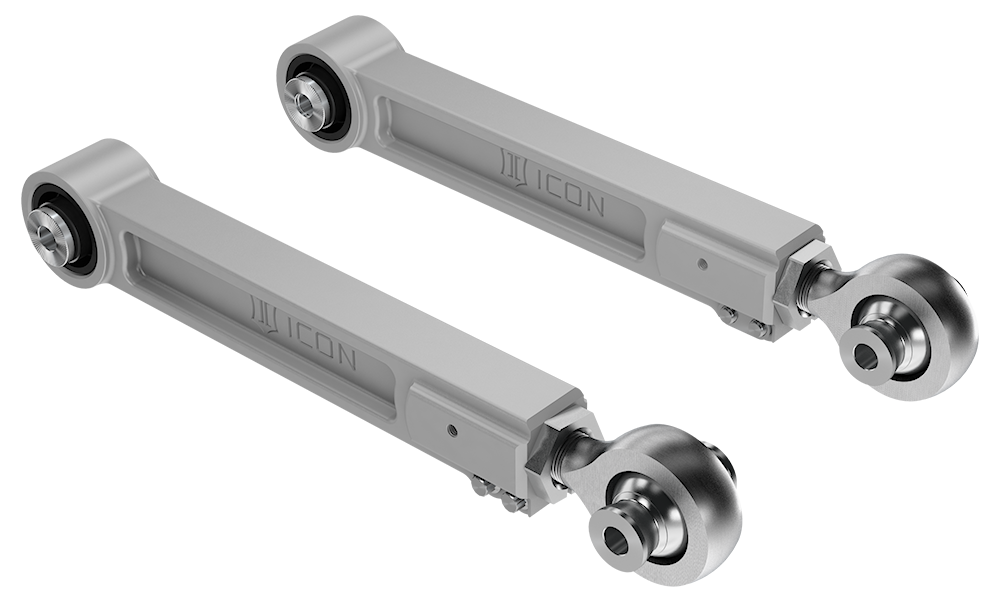

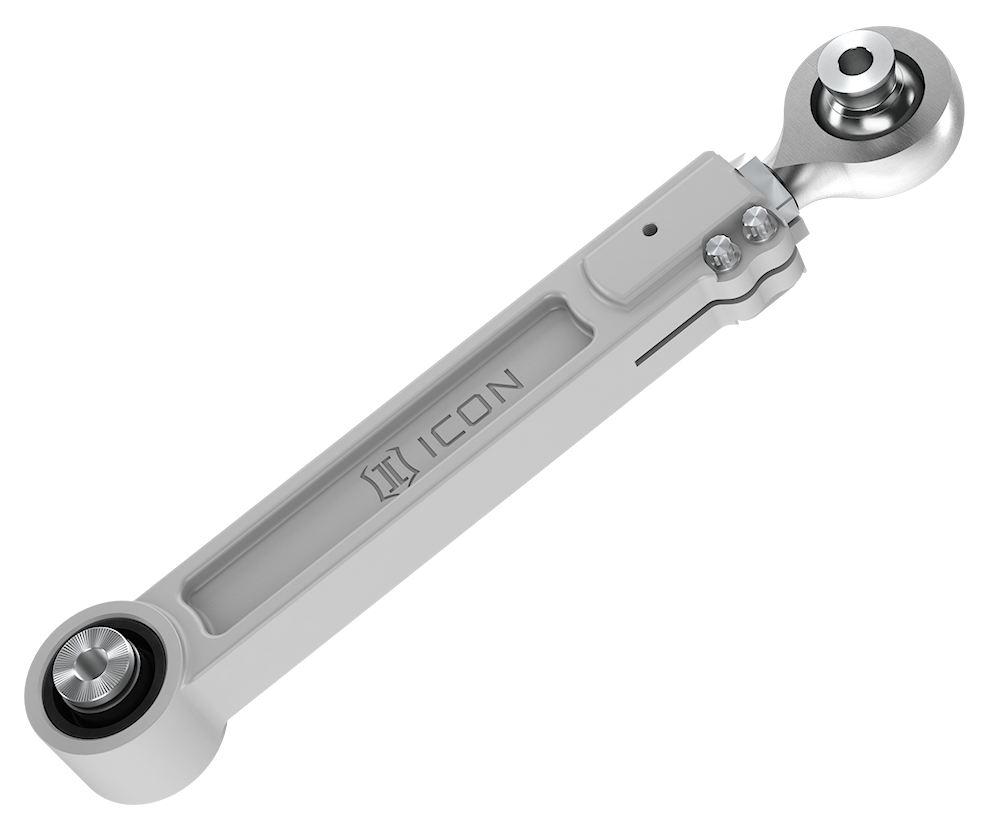

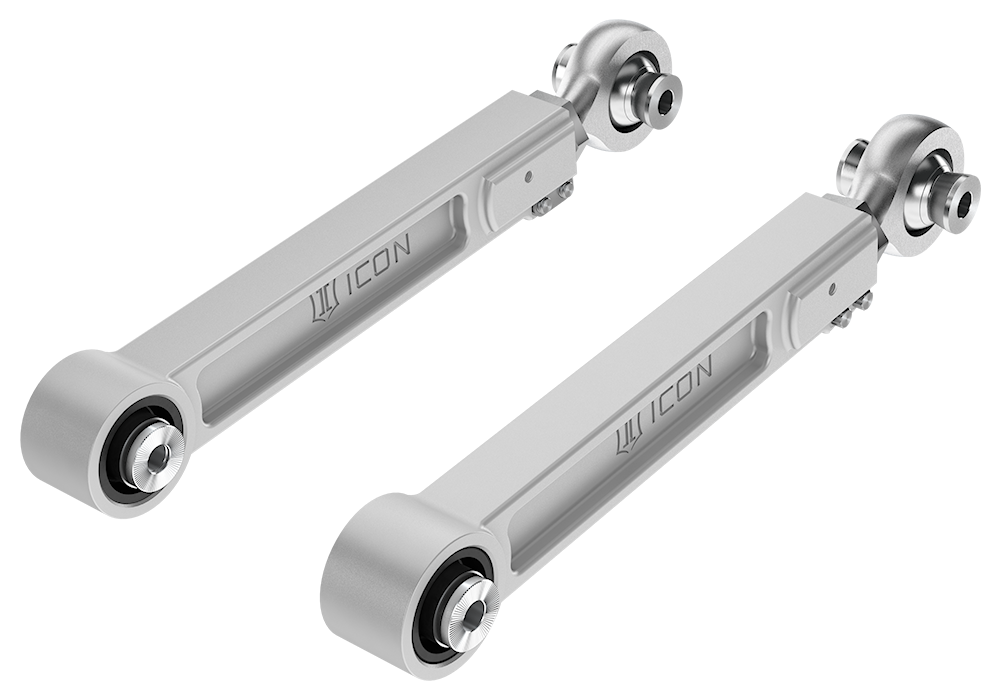

54102 - Icon Billet Rear Upper Link Kit

ICON's Billet Aluminum Rear Upper Link Arms for the 2022 Toyota Tundra are a significant upgrade over the factory units due to increases in strength adjustability and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance providing a major improvement over the construction of the stock units. This upper link arm kit features PTFE-lined FK rod ends for increased suspension articulation reduced deflection and on-vehicle link arm length adjustability using ICON's double adjuster system. Additionally multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle's suspension to function as intended without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the "ICON1K" real-world test cycle for a final stamp of approval.

• CNC machined 6061 aluminum
• On vehicle adjustment for different ride heights and pinion angles
• Vehicle specific design
• Design for maximum articulation
• FK JM16T-1 PTFE-lined rod ends
• No grease dual durometer bushing for maximum angularity and noise isolation
• Covered by ICON's lifetime warranty

NOTE: ICON part number 55153 (22-UP TUNDRA AIR RIDE BRACKET KIT) is required for air ride equipped vehicles.
